貼體膜涂布機 淋膜復合機 熱熔膠涂布機

關鍵字：淋膜復合機,熱熔膠涂布機,貼體膜涂布機,熱熔膠復合機,面料復合機

在線詢盤

更新時間：2012-05-28

供應商旭騰熱熔膠涂布機械有限公司

所屬分類印染,后整理加工

加工方式復合

詳細介紹

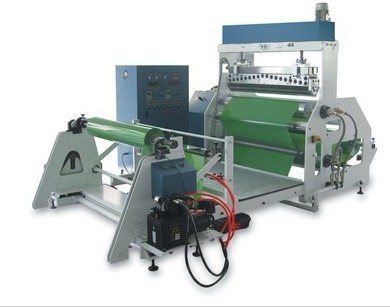

RTT貼體膜熱熔膠涂布機

主要特點：

1. 采用旭騰公司專用于貼體膜生產的流延模頭。

2. 模頭以熔體流變分析技術為核心，結合CAD/CAM/CAE計算機工程技術及高精致數控加工中心，設計和制造具有復雜的流線型流道的流延模頭。

3. 采用智能PID溫度控制系統，溫度控制非常準確，誤差在1℃以內。

4. 該熱熔膠涂布機配有精密計量泵，供膠量更加穩定。

應用范圍：RTT貼體膜熱熔膠涂布機適用于生產PE貼體膜，PET貼體膜，PVC貼體膜等各種環保復合貼體包裝膜。

RTT Skin Film Hot Melt Coating Machine

Applied Range:

RTT Skin Film Hot Melt Coating Machine is suitable for making all kinds of Environmental protection compound skin packaging film, including: PE skin film, PET skin film, PVC skin film and so on.

Main Characteristic:

1. Our Company specially make the die head of curtain coating for Skin Film Hot Melt Coating Machine

2. The centre technology of die head is the melt flow analysis technique, Combined with CAD/CAM/CAE computer engineering technology and high precision CNC processing center. The curtain coating die head has complicated and streamline flow channel.

3. RTT Skin Film Hot Melt Coating Machine adopts intelligent PID temperature Control System. It is very exact to control the temperature, the error is in less than 1℃.

4. RTT Skin Film Hot Melt Coating Machine equip with precision measuring pump, which makes the hot melt glue supply more stable.

Technical parameters

Model	型號	RTT
Max. Coating width	涂布寬度	400-1500mm
Coating Weight	涂布量	10-100g/m²
Max working speed	機械速度	50m/min
Unwinding Diameter	放卷直徑	1000mm
Rewinding Diameter	收卷直徑	700mm
Unwinding device	放卷裝置	1 set
Rewinding device	收卷裝置	1 set
Correction Edge Device	糾偏裝置	1 set
Length	長度	4100mm
Height	高度	2500mm
